IP68 Waterproof antibacterial Medical Keyboard with ruggedized & sealed touchpad
DESCRIPTION: 106 keys IP68 dynamic rated & ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities, integrated numeric keypad, function keys, sealed & ruggedized tough touchpad for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, Clean key for easy cleaning via lock/disable the keyboard without needing to take away the keyboard from PC, mountable desk top version with robust polycarbonate case. Adjustable industrial backlight optional.
DIMENSIONS : 405mm x 154.8mm x (20.0mm - 37.9 mm) (L x W x H)
MECHANICAL DATA:
| Key | 108 keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Touchpad cover | Composite, More than Lifetime 10 million strokes, Mutual Capacitance sensing |
| X/Y position sensing resolution | 40 counts/mm |
| X/Y position reporting | Relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5 VDC ±0.25V |
| Current rating (active mode) | 17mA |
| Key Size | 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key |
| Switch life | more than 10 million of operations |
| Cable Length | 2.5m |
| G.W. | 1.30KGs |
ELECTRICAL DATA:
| Supply Voltage | +5V DC +/-5% |
| Current Rating | 30mA (non-backlight) , 150mA (with backlight on) |
| EMC Standard | IEC61000-4-2:2008; IEC61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 EMI: EN55022: 2010 |
| EMS | EN55024: 2010 |
| Lifespan | 3 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Protection Level | IP68, NEMA 6P |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
APPLICATIONS:
This keyboard provides full-size versatility in a rugged, compact design with the added convenience of an integrated touchpad.
For working in low-light areas, it is also available with optional LED backlighting. This keyboard is ideal for use in environments
ranging from manufacturing to material handling to medical settings. Its large numeric pad allows for easy data entry, while its
robust polycarbonate case protects it against any hazardous environment.
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments,
warehouses
OTHER INDUSTRIES
MAIN FEATURES:
keyboard with NVIS-compliant red adjustable backlighting optional, while NVIS backlighting makes this keyboard ideal for
aviation or vehicle applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and
corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants
and heavy industrial use.
Clean key-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal
downtime-User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
Special durable-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.50mm key travel.
Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
Integrated touchpad.
Integrated numeric keypad.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone, Robust ABS Polycarbonate Case
Low-profile keys for easy cleaning
Key life: 5 millions

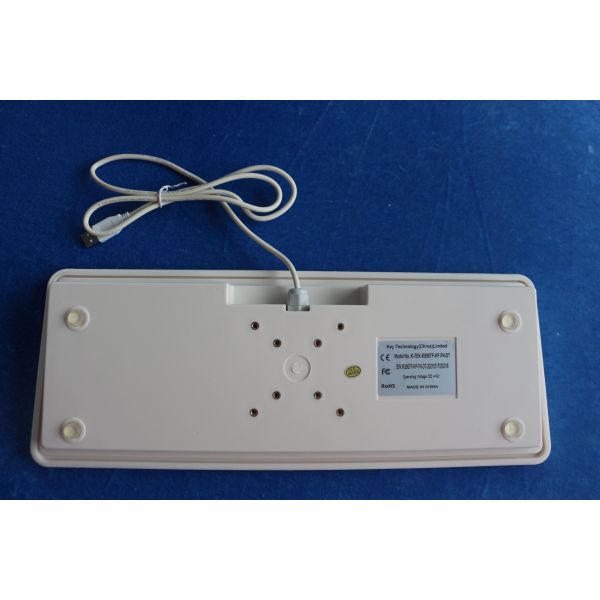

Product Image
